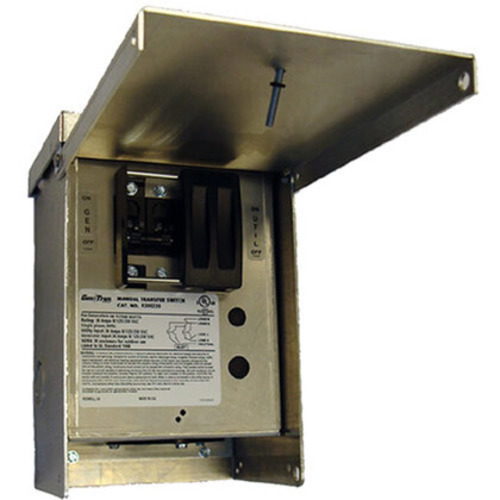

Generac 6377 30 Amp Nema 3R Single Circuit Manual Transfer Switch

The Generac 30A Single-Circuit Manual Transfer Switch is designed for portable generators with a minimum output of 5kW and a 30-Amp receptacle, this manual transfer switch allows you to safely power 1-2 critical circuits—such as a gas furnace, well pump, or electric water heater—or two smaller circuits like a refrigerator or sump pump. It can be installed indoors or outdoors and features a direct cord connection for quick and easy setup with your generator.

Features:

• NEMA 3R enclosure (outdoor rated)
• Feed generator power to one or two critical circuits during a power outage--for example, a well pump, water heater, or septic lift pump
• L14-30 inlet on bottom of enclosure for cord connection

Specifications:

• Model: 6377
• UPC Code: 696471063776
• Number of Circuits Provided: 2
• Maximum Number of Circuits: 2
• Maximum Amperage: 30
• Voltage: 125 / 250, 1Ø
• Required AC Frequency: 60 Hz
• Included Breakers: 30 Amp, 2-Pole
• Enclosure: Outdoor (NEMA 3R)
• NEMA Configuration of Inlet: L14-30
• Warranty: Two Year Limited

Dimensions and Weight:

• Product L x W x H (in / mm): 9 x 6 x 5 (229 x 152 x 127)
• Product Weight - lbs (kg): 5 (2.25)
