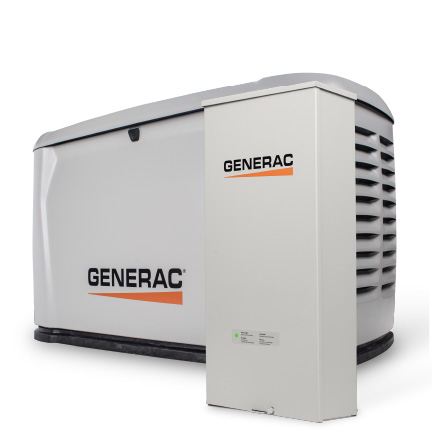

Generac 7323 14kW Air Cooled Standby Generator with 200 Amp Transfer Switch
Product Description
Generac 7323 14kW Standby Generator Propane Natural Gas w/ 200A Automatic Transfer Switch Cellular
The new Generac 7323 is a complete home standby power solution, bundling a powerful 14kW generator with a 200A automatic transfer switch for full home coverage. Designed with built-in cellular connectivity, it features Wi-Fi and Bluetooth capabilities allowing you to monitor performance and control your generator with Mobile Link, whether you're home or away. The 200A transfer switch comes equipped with whole home surge protection, helping shield your appliances and electronics from damage; housed in a NEMA 3R-rated aluminum enclosure for indoor or outdoor installation.
Features
- Electronic fuel & ignition control optimizes fuel use for a more cost-efficient and lower emission back-up power solution.
- Long, best-in-class service intervals mean you spend less time on maintenance and more time enjoying the comfort that comes with owning a standby generator.
- Remote diagnostics monitor your generator’s performance and help detect issues before they become a problem, helping you save time & money on maintenance.
- Built-in Cellular Connectivity allows you to monitor performance and control your generator with Mobile Link whether you're home or away.
- Improved cold start performance enables generator start-up in cold climates.
- Sloped roof and rear air intake reduce risk of snow and ice intrusion.
- Compatible with ecobee by Generac thermostats and Generac PWRcell battery systems to seamlessly monitor & control your home’s energy.
- The automatic transfer switch comes equipped with built-in whole home surge protection, helping shield your appliances and electronics from damaging power surges.
- Every Generac Standby Generator comes with a 5-year limited warranty, and over 65 years of innovation behind it.
Package Contents
- Generac 14kw Standby generator
- 200A Transfer Switch
- User's manual
Specifications
| Generator | |
| Rated Power (LP) | 14kW |
| Rated Power (NG) | 14kW |
| Rated Voltage | 240V |
| Total Harmonic Distortion | Less than 5% |
| Main Line Circuit Breaker | 60 amp |
| Phase | 1 |
| Frequency | 60 Hz |
| Sound Output (at normal load) | 65 dB |
| Engine Type | Generac G-Force 800 Series |
| Displacement | 817cc |
| Fuel Consumption (NG) | 1/2 Load: 189 cu.ft/hr | Full Load: 243 cu.ft/hr |
| Fuel Consumption (LP) | 1/2 Load: 1.76 gal/hr | Full Load: 2.92 gal/hr |
| Dimensions | 46.4" x 26.3" x 30.7" |
| Weight | 391 lbs |
| Transfer Switch | |
| No. of Poles | 2 |
| Current Rating | 200A |
| Voltage Rating | 120/240 VAC |
| Enclosure Type | Standard NEMA/UL 3R |
| Surge Protection | Integrated surge protection |
| Dimensions | 13.5" x 6.3" x 30.1" |
| Weight | 39 lbs |
